Beat your competitors with the fastest self propelled machine on the market.
With a design capacity of 750 tonnes per hour and a massive six metre long dumping target zone, you will spend more time watching the grain pile grow and less time managing trucks.
Perhaps you are spending a lot of time on the end of a shovel sorting out grain spills or consuming hours watching grain trickling from trailer bagging doors. If you aspire to be an industry leader, the KE BunkerStacker3750 is the machine for your operation. Trucks will dump, go and keep coming back with more grain.
And when it’s time for the grain to go, add a surge hopper to the stacker and the stacker can now be used to empty the bunker it filled.
You work hard and so will your BunkerStacker!
FEATURES
| MODEL 3750 UBA **NEW** | MODEL 3750 UBB |
|---|---|
| Drive Over Hopper (DOH) utilises Underbelly Auger Conveyor (UBA) | Drive Over Hopper (DOH) utilises Underbelly Belt Conveyor (UBB) |
| Proven ability to handle all grains, pulses and oilseeds. Recommended for oilseeds | Proven ability to handle all grains, pulses and oilseeds |
| UBA Auger Conveyor features clean out door to enable regular cleaning and access for maintenance | UBB Belt Conveyor features slide-out conveyor to enable easy removal for maintenance and cleaning |
Self-propelled and controlled from operator platform situated at Underbelly Auger Conveyor (UBA) or Underbelly Belt Conveyor (UBB)
A narrow wheel to wheel footprint ensures that the machine is able to service bunkers that are tightly packed and with as little as 14 metres between them
Drive Over Hopper (DOH), UBA or UBB frame and Stacker modules all lock together so the machine can be operated and driven as a single unit
Genset powers all modules, floodlights, hydraulics and the on-board compressor unit
All drives are electrically powered with separation of the DOH, UBA or UBB and Stacker modules made easy with plugged connections
Hydraulically operated lifting jacks, ramps and drive wheels make set-up, levelling and manoeuvring a one-person operation
Stacker mounted genset hydraulically slides out for easy maintenance
Fully gridded 6 metre DOH deck allowing trucks to “dump and go”
Well lit operator platforms and LED spotlights on boom for night time operation
Air compressor with hose and wand on board to assist with clean up
Sun protection and operator controls available on each side of the DOH
Pendant control on Stacker and fire extinguishers provided
Multi-directional discharge chute on Stacker to make trimming easier and maximise storage capacity
OPTIONAL EXTRA: 8 tonne capacity outload hopper fitted with slide gate valve to control the flow of product
UBA model – Auger Conveyor
UBB model – Belt Conveyor
Truck dump and go
Easy to operate
Simple to maintain
BunkerStacker 3750 (side view)
BunkerStacker3750 CAD (side view)
BunkerStacker3750 CAD (top view)
Dump & Go – Drive Over Hopper

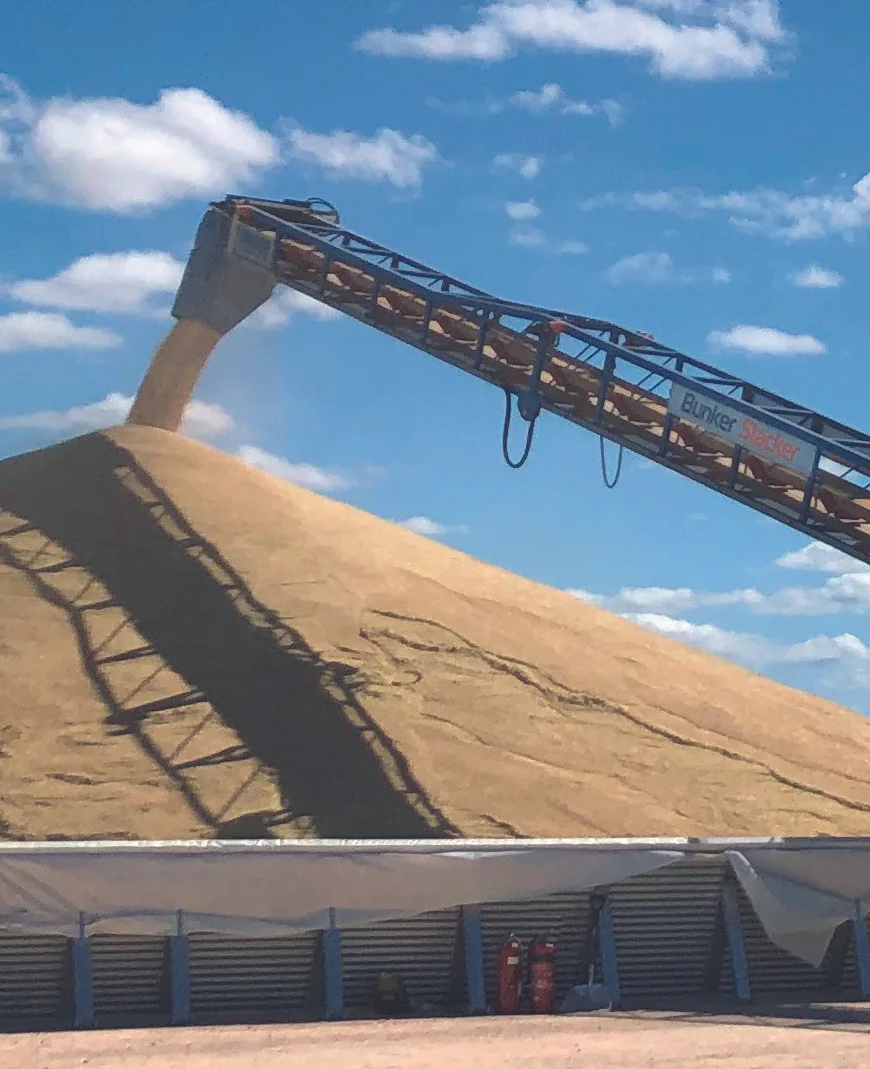

Multi-directional discharge chute to make trimming the bunker easy
Out loading via BunkerStacker fitted with surge hopper
Several photos are courtesy of T-Ports
Download factsheet (PDF)
